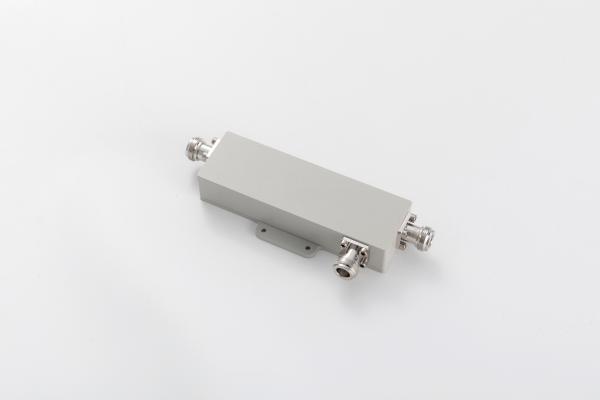

550-2700 MHz Directional Coupler N Female PIM -150 / -155 / -161 / -165

Brand Name : Vinncom

Model Number : VN-DC-05527-ON

Certification : RoHS/ISO9000

Place of Origin : China

Part Number : VN-DC-05527-ON

Impedance ( Ohm ) : 50

VSWR : ≤1.25

IM3 (dBc @ 2×43dBm) : -150 / -155 / -161/-165

Application : Indoor & Outdoor

Interface : N Female

Contact Now

550-2700MHz Directional Coupler N Female PIM -150 / -155 / -161/-165

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

VN-DC-0527-ONx-xxx.docx

Part Number VN-DC-05527-ON
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) ± 0.9 ± 0.9 ± 0.9 ± 1.1 ± 1.5 ± 1.5
Insertion Loss (dB) ≤2.2 ≤1.7 ≤1.3 ≤0.8 ≤0.4 ≤0.2
Isolation (dB) ≥25 ≥26 ≥27 ≥30 ≥35 ≥40
IM3 (dBc @ 2×43dBm) -150 / -155 / -161/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 127 × 40 × 24.5
Net Weight (g) 350 ± 20
Packing Dimensions (mm,L×W×H) 180 × 75 × 30
Packing Carton Size (mm,L×W×H) 400 × 380 × 170
ROHS Compliance Yes
Revision R1
550-2700 MHz Directional Coupler N Female PIM -150 / -155 / -161 / -165
