698-2700MHz N Female Power Splitter PIM -150 / -155 / -161 / -165

Brand Name : Vinncom

Model Number : VN-PS-0727-ON

Certification : RoHS/ISO9000

Place of Origin : China

Interface : N Female

Handling Power (Watt, max) : 300

VSWR : ≤1.25

Operating Frequency ( MHz ) : 698-2700

Impedance ( Ohm ) : 50

IM3 (dBc @ 2×43dBm) : -150 / -155 / -161 / -165

Contact Now

698-2700MHz N Female Power Splitter PIM -150 / -155 / -161 / -165

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.

VN-PS-0727-ONx .docx

Part Number VN-PS-0727-ONx
Operating Frequency ( MHz ) 698-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss (dB) ≤3.3 ≤5.1 ≤6.4
IM3 (dBc @ 2×43dBm) -150 / -155 / -161 / -165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200

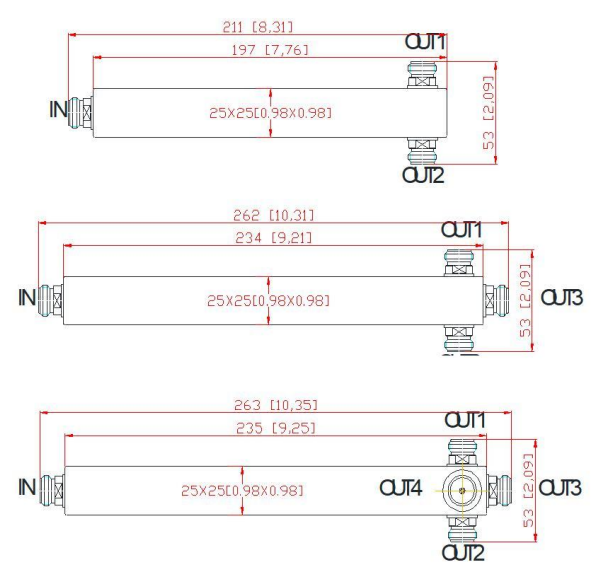

Dimension (mm)(L×W×H, excl connector) 197 × 25 × 25 234 × 25 × 25 235 × 25 × 25
Net Weight (g) 340± 20 425 ± 20 460 ± 20
Packing Dimensions (mm,L×W×H) 240 × 80 × 35 280 × 80 × 35 280 × 80 × 35
Packing Carton Size (mm,L×W×H) 540× 420 × 160 580× 420 × 160 580× 410 × 140
ROHS Compliance Yes
Revision R1
