700-4000MHz N Female Power Splitter VSWR Less 1.25 / Less 1.3

Product Categories
HeFei Vinncom Science And Technology Co.,LTD
Contact Now

700-4000MHz N Female Power Splitter VSWR Less 1.25 / Less 1.3

Brand Name : Vinncom

Model Number : VN-PS-0740-ONx

Certification : RoHS/ISO9000

Place of Origin : China

Part Number : VN-PS-0740-ONx

Operating Frequency ( MHz ) : 700-4000

Impedance ( Ohm ) : 50

IM3 (dBc @ 2×43dBm) : -140 / -150 / -155 / -160

Degree of Protection : IP65

Interface : N Female

Contact Now

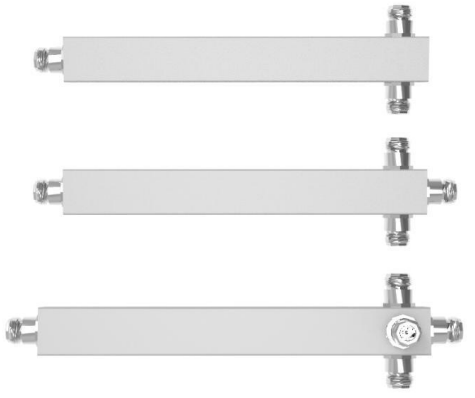

700-4000MHz N Female Power Splitter VSWR ≤1.25/≤1.3

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.

Part Number VN-PS-0740-ONx
Operating Frequency ( MHz ) 700-4000
Impedance ( Ohm ) 50
VSWR ≤1.25 ≤1.3 ≤1.25
Split Loss (dB) ≤3.3 ≤5.1 ≤6.5
IM3 (dBc @ 2×43dBm) -140 / -150 / -155 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 218 × 25 × 25 218 × 25 × 25 244 × 25 × 25
Net Weight (g) 375± 20 405 ± 20 470 ± 20
Packing Dimensions (mm,L×W×H) 280 × 80 × 35 280 × 80 × 35 320 × 80 × 35
Packing Carton Size (mm,L×W×H) 580× 420 × 160 580× 420 × 160 655× 410 × 140
ROHS Compliance Yes
Revision R1

700-4000MHz N Female Power Splitter VSWR Less 1.25 / Less 1.3

700-4000MHz N Female Power Splitter VSWR Less 1.25 / Less 1.3
